oracid Posted January 12, 2017 Posted January 12, 2017 To day, I would like to show you my alternative worm gear nut. Thank you for watching and feedback. Quote
Saberwing40k Posted January 12, 2017 Posted January 12, 2017 I've seen this trick before, but not like this. Do the 8z gears ever slip, or are they jammed so that they don't rotate? Quote
oracid Posted January 12, 2017 Author Posted January 12, 2017 (edited) No, the 8z gears don't slip, they are blocked with the 2 two teeth along the piece. Edited January 12, 2017 by oracid Quote
schraubedrin Posted January 12, 2017 Posted January 12, 2017 Nice and compact solution. Is it in system? I thought the worm gear is a little bit bigger than one stud... Quote
oracid Posted January 12, 2017 Author Posted January 12, 2017 58 minutes ago, schraubedrin said: Is it in system? I don't understand your question. Could you be more specific. 59 minutes ago, schraubedrin said: I thought the worm gear is a little bit bigger than one stud... Yes the worm gear is a little bigger than one stud. But the 8z gear teeth go inside the worm gear. It fits very good. Try it. Thank you all. Quote
skppo Posted January 12, 2017 Posted January 12, 2017 18 minutes ago, oracid said: I don't understand your question. Could you be more specific. Yes the worm gear is a little bigger than one stud. But the 8z gear teeth go inside the worm gear. It fits very good. Try it. Thank you all. The worm gear fits next to the bone frame only in a specific rotation. Pretty sure it is an illegal connection, LDD does not allow it in all positions. Tested it with real parts and found out that with short axles you don't actually need the 8-tooth gears to move the frame as the edges of the pinhole in it act as the teeth. I assume it would slip with high torque. Quote
AOW Posted January 12, 2017 Posted January 12, 2017 Is not the XL motor too powerful for such construction? What will happen if the motor is not stopped or reversed ? Quote

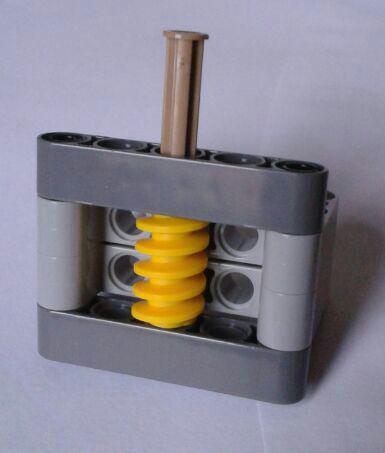

schraubedrin Posted January 12, 2017 Posted January 12, 2017 2 hours ago, oracid said: 3 hours ago, schraubedrin said: Is it in system? I don't understand your question. Could you be more specific. I'm sorry, i meant whether this construction used the exact geometry of the parts or if the flex of the plastic is necessary for this to work. I just tested it (see image below) and wasn't able to put an axle through when no flex is possible. But that's just a tiny nitpick of my inner purist I still like the compactness of your solution and how perfect the 8t gears fit in there. Quote
Didumos69 Posted January 12, 2017 Posted January 12, 2017 (edited) There are alternatives for the stacked bone frames to make it legal, for instance this one and probably ones that are better secured. Edited January 12, 2017 by Didumos69 Quote
oracid Posted January 12, 2017 Author Posted January 12, 2017 This articulation is a simple example. You can make a 3D printer if you prefer. @skppo. Yes of course, this is an illegal connection. With high torque you have to test. @Didumos69. This seems good, I will test it right now. Would you show more pictures. @AOW.Damage, that's for sure! Thanks for your feedbacks. Quote
Didumos69 Posted January 12, 2017 Posted January 12, 2017 26 minutes ago, oracid said: @Didumos69. This seems good, I will test it right now. Would you show more pictures. I'm on the road right now, but the only parts that are hard to see are 2 3L liftarms with axle connector. Quote
oracid Posted January 12, 2017 Author Posted January 12, 2017 (edited) 1 hour ago, Didumos69 said: There are alternatives for the stacked bone frames to make it legal, for instance this one and probably ones that are better secured. Excellent ! This is very good ! Much better than my solution ! Thank you so much ! Edited January 12, 2017 by oracid Quote
BusterHaus Posted January 12, 2017 Posted January 12, 2017 Shouldn't the blue pins be replaced with non-rotating axles to prevent the 8 tooth gears from turning if too much force is applied to the carriage? Or are they used to prevent damage at the end of travel? Quote
Didumos69 Posted January 12, 2017 Posted January 12, 2017 14 minutes ago, BusterHaus said: Shouldn't the blue pins be replaced with non-rotating axles to prevent the 8 tooth gears from turning if too much force is applied to the carriage? Or are they used to prevent damage at the end of travel? They need a 22.5 degree offset and they are fixed by the adjacent parts. Quote
BusterHaus Posted January 12, 2017 Posted January 12, 2017 (edited) On 2017-01-12 at 1:03 PM, Didumos69 said: They need a 22.5 degree offset and they are fixed by the adjacent parts. If you hold the carriage in place and turn the worm gears, the 8 tooth gears will rotate and can be oriented to 90 degrees. Edit: It looks like it's possible to align two gears on the same side (if not, it's very close). Edited April 19, 2017 by BusterHaus Removed picture. Quote
oracid Posted January 12, 2017 Author Posted January 12, 2017 25 minutes ago, BusterHaus said: Shouldn't the blue pins be replaced with non-rotating axles to prevent the 8 tooth gears from turning if too much force is applied to the carriage? Or are they used to prevent damage at the end of travel? This is very easy to try and you will see there is no problem. If too much torque, the full figure will explode before the tooth slip or broke. Quote
Didumos69 Posted January 12, 2017 Posted January 12, 2017 3 minutes ago, BusterHaus said: If you hold the carriage in place and turn the worm gears, the 8 tooth gears will rotate and can be oriented to 90 degrees. If the gears wouldn't be fixed by the outer ends of the bone frames, then yes they would. I was reasoning given the current situation. Actually the gears are also placed illegally, they sit a little too tight against the bone frames. Quote
BusterHaus Posted January 12, 2017 Posted January 12, 2017 11 minutes ago, Didumos69 said: If the gears wouldn't be fixed by the outer ends of the bone frames, then yes they would. I was reasoning given the current situation. Actually the gears are also placed illegally, they sit a little too tight against the bone frames. Ok, I see it now. For some reason I thought they were free to rotate. Quote
oracid Posted January 12, 2017 Author Posted January 12, 2017 (edited) 3 minutes ago, BusterHaus said: Ok, I see it now. For some reason I thought they were free to rotate. The gears don't rotate, that's why it works. But your drawing seems good to me too. Edited January 12, 2017 by oracid Quote
Tommy Styrvoky Posted January 13, 2017 Posted January 13, 2017 (edited) What about something like this, I made it one stud smaller, though It may not interface well with Technic as it is an even number of studs wide, it may work better with system builds. I think it is possible to make this be 3 studs wide, though it won't be as rigid, I may take a look into a 3 stud wide design, as I have a couple of ideas. LDD file Slider rail by Tommy Styrvoky, on FlickrSlider rail by Tommy Styrvoky, on Flickr I figured out a 3 stud wide variant, though the input is off center. LDD file Slider rail small by Tommy Styrvoky, on Flickr Slider rail small by Tommy Styrvoky, on Flickr Thanks for the inspiration. Edited January 13, 2017 by Tommy Styrvoky Quote
oracid Posted January 13, 2017 Author Posted January 13, 2017 1 hour ago, Tommy Styrvoky said: Thanks for the inspiration. It is me who thank you for all these magnificent variations. I will try to make all this right away and will show some photos. Quote
2LegoOrNot2Lego... Posted January 13, 2017 Posted January 13, 2017 I had my thoughts with the original design, something wasn't right. Your variations @Tommy Styrvoky are brilliant...would love to explore those someday... Quote
agrof Posted January 13, 2017 Posted January 13, 2017 (edited) Beautifully compact and clever ideas, thanks fo sharing them, and for bringing the theme on the table Oracid! I believe the idea from Tommy would have a great use as crane arm extension. Edited January 15, 2017 by agrof grammar Quote
oracid Posted January 13, 2017 Author Posted January 13, 2017 Thank you @agrof and thank you all. Here, you can see somme photos about the @Didumos69 idea. The others will come soon. Quote
